RF SoC & FPGA PCBA OEM

Sunwin manufactures RF SoC and FPGA processing boards, including 5G communication and phased-array radar boards, with fine-pitch BGA assembly, shield-can soldering, X-ray inspection and RF testing.

Request a Quote View Product Examples

sunwin@saketron.com · sunwin@thankgain.com · WhatsApp +86-18576601365

Manufacturing and test

RF test instruments: SMJ100A signal generator, ZVB8 vector network analyzer, GSS6300 GPS/BeiDou simulator, 8960 and CMW500 radio communication testers
Shielded-box testing, firmware programming and electrical network testing
Fine-pitch BGA/LGA down to 0.35 mm pitch, SiP assembly and X-ray inspection
Applications: 5G communication, base-station antennas and phased-array radar

Product examples

Example assemblies from our production lines.

RF SoC & FPGA PCBA OEM — PRF-002 — PRF-002

RF SoC & FPGA PCBA OEM — PRF-004 — PRF-004

RF SoC & FPGA PCBA OEM — PRF-5G-003 — PRF-5G-003

RF SoC & FPGA PCBA OEM — PRF-5G-005 — PRF-5G-005

RF SoC & FPGA PCBA OEM — PRF-5G-007 — PRF-5G-007

RF SoC & FPGA PCBA OEM — PRF-5G-009 — PRF-5G-009

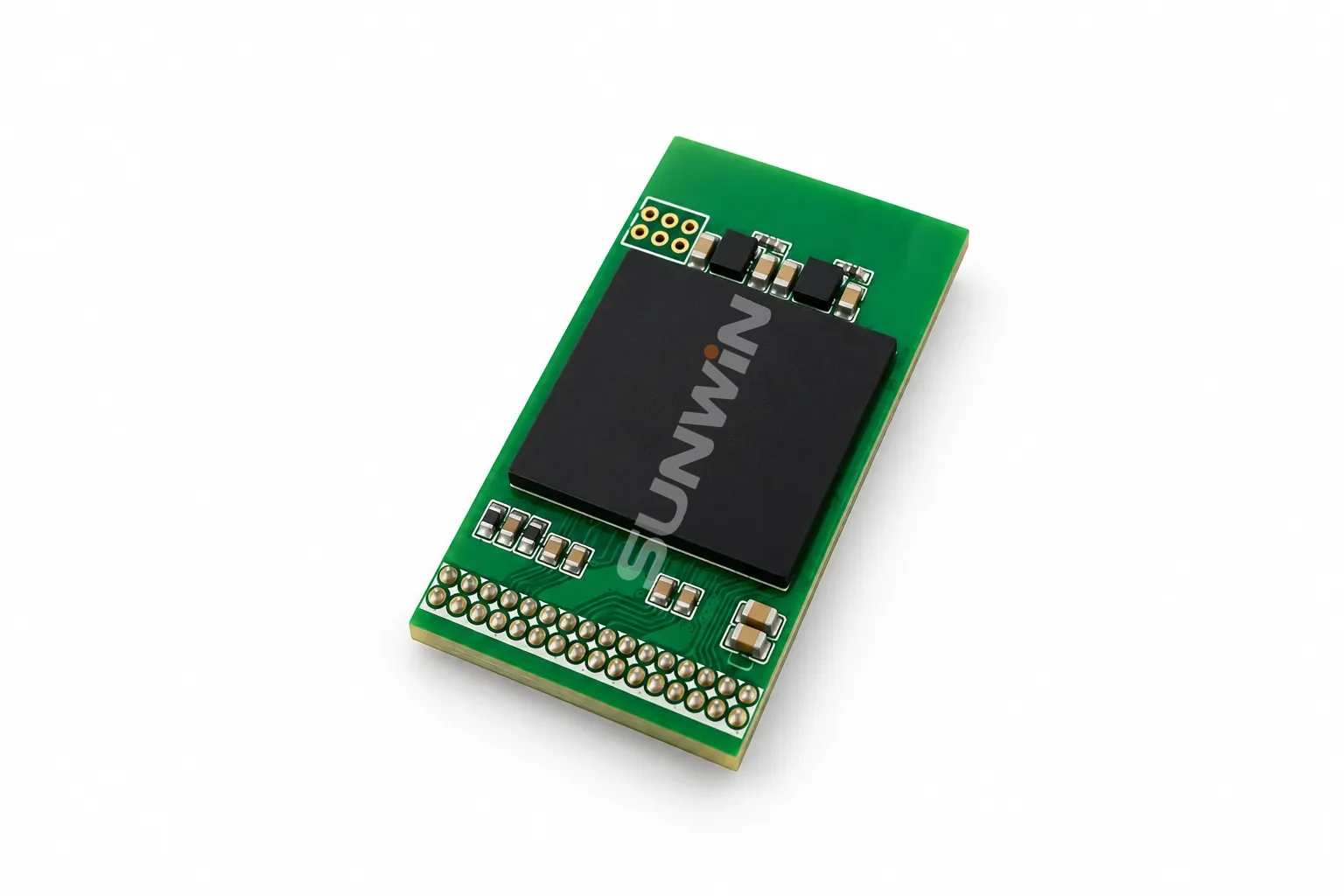

RF SoC & FPGA PCBA OEM — PRF-5G-011 — PRF-5G-011

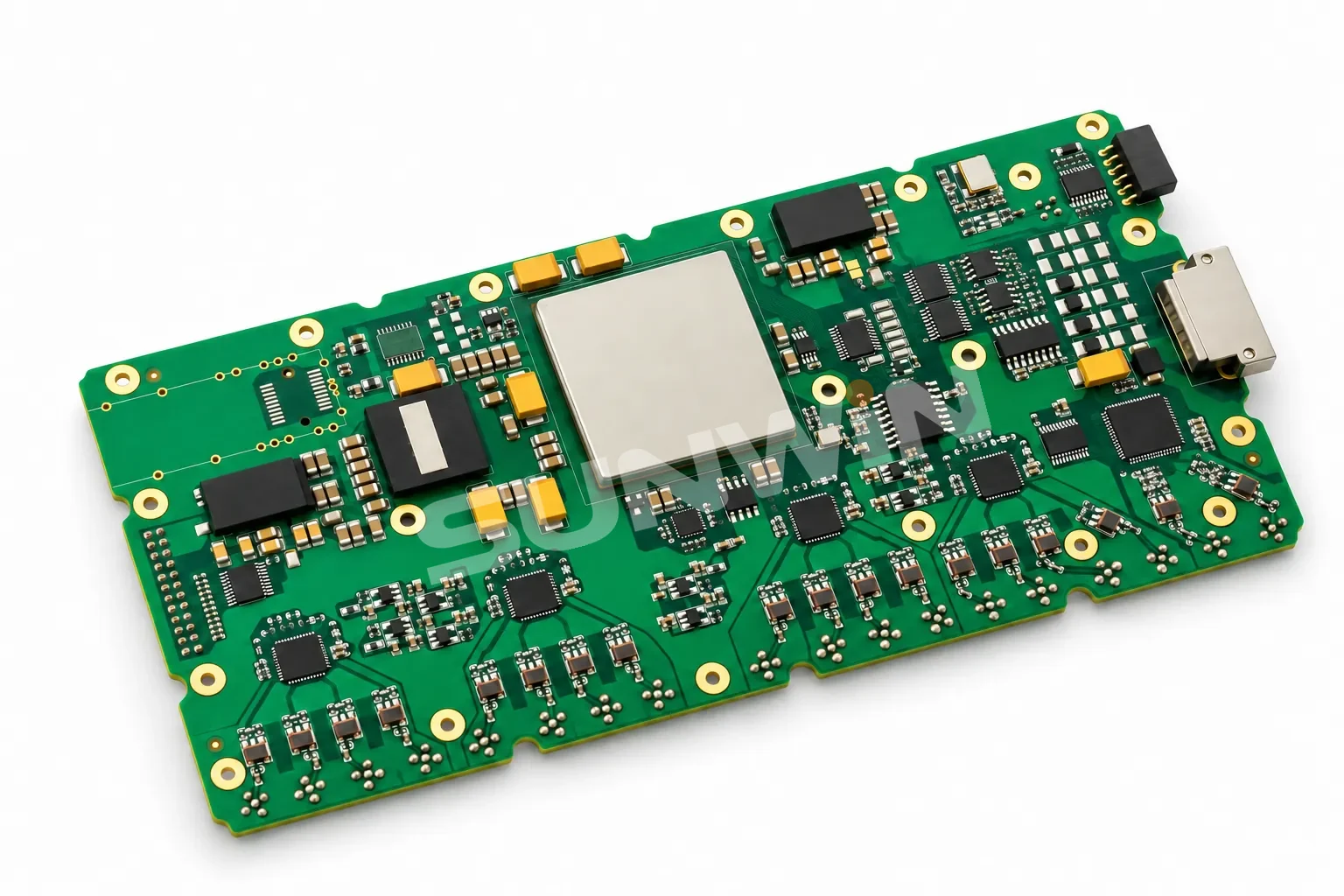

RF SoC & FPGA PCBA OEM — PRF-006 — PRF-006

RF SoC & FPGA PCBA OEM — PRF-008 — PRF-008

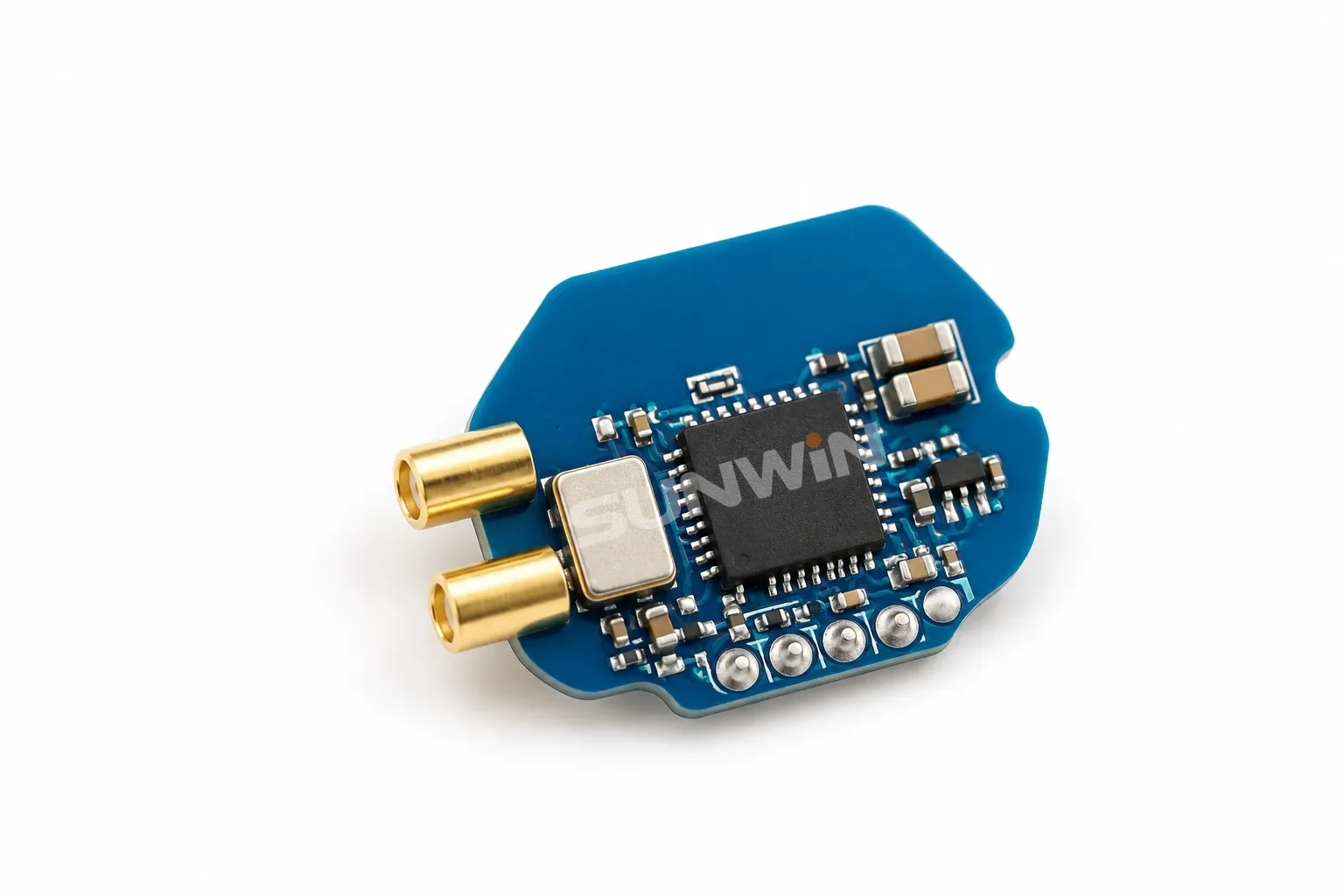

RF SoC & FPGA PCBA OEM — PRF-010 — PRF-010

RF SoC & FPGA PCBA OEM — PRF-011 — PRF-011

Frequently asked questions

Can you test RF boards after assembly?

Yes. Our test workshop has signal generators, vector network analyzers and radio communication testers, plus shielded boxes for RF testing.

What do you need for a quotation?

To start an evaluation, send your Gerber or drawing files, BOM, package or assembly specification, test and quality requirements, and forecast volume.

Manufacturing base

Sunwin is the overseas business company of Shenzhen Saketron Electronics Technology Co., Ltd., its shareholder and manufacturing base since 2009. 21 SMT lines · 8,000+ m². Factory certifications
