Workshop & Equipment: 21 SMT Lines and Packaging Cleanrooms

2009Factory Established

8,000㎡+Factory Area

21High-Precision SMT Lines

30M+SMT Placements per Day

Workshop

SMT production line at Sunwin's manufacturing base in Shenzhen — SMT production line

SMT line with printing and placement at Sunwin's manufacturing base in Shenzhen — SMT line with printing and placement

SMT lines with reflow and AOI at Sunwin's manufacturing base in Shenzhen — SMT lines with reflow and AOI

SMT workshop at Sunwin's manufacturing base in Shenzhen — SMT workshop

SMT workshop with MES line dashboards at Sunwin's manufacturing base in Shenzhen — SMT workshop with MES line dashboards

Optoelectronic packaging cleanroom at Sunwin's manufacturing base in Shenzhen — Optoelectronic packaging cleanroom

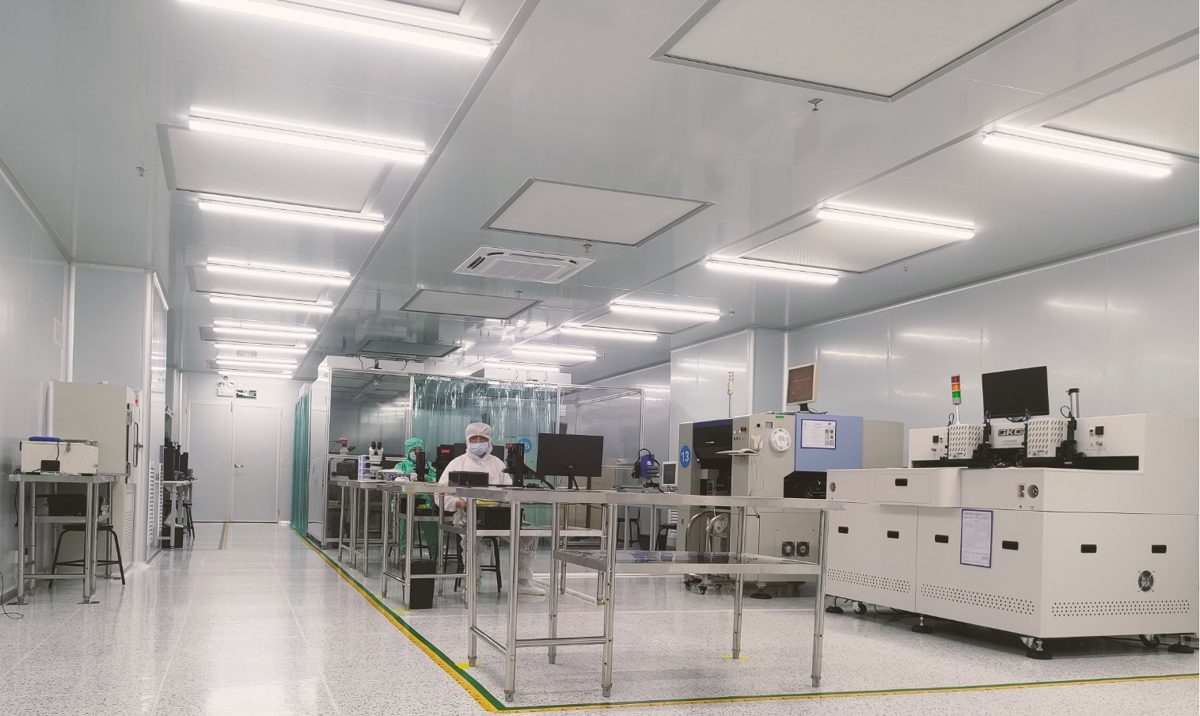

Packaging workshop at Sunwin's manufacturing base in Shenzhen — Packaging workshop

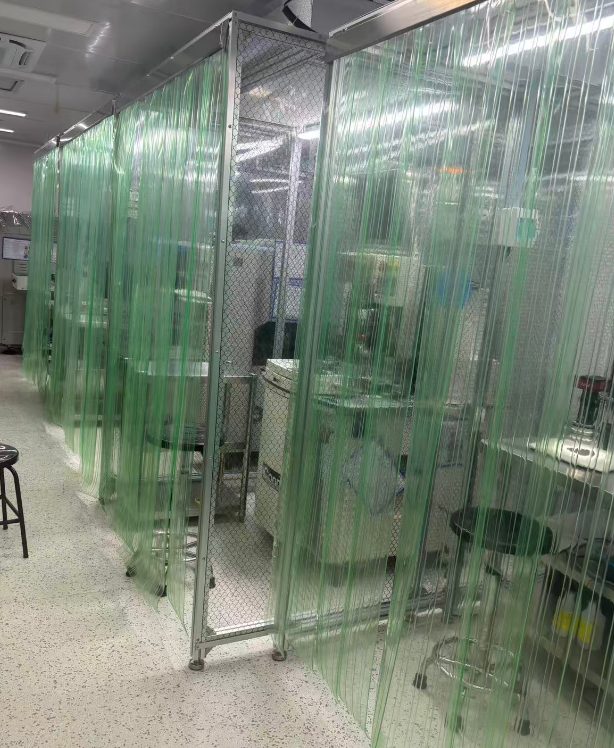

Class 10,000 cleanroom area at Sunwin's manufacturing base in Shenzhen — Class 10,000 cleanroom area

Die attach and bonding in the cleanroom at Sunwin's manufacturing base in Shenzhen — Die attach and bonding in the cleanroom

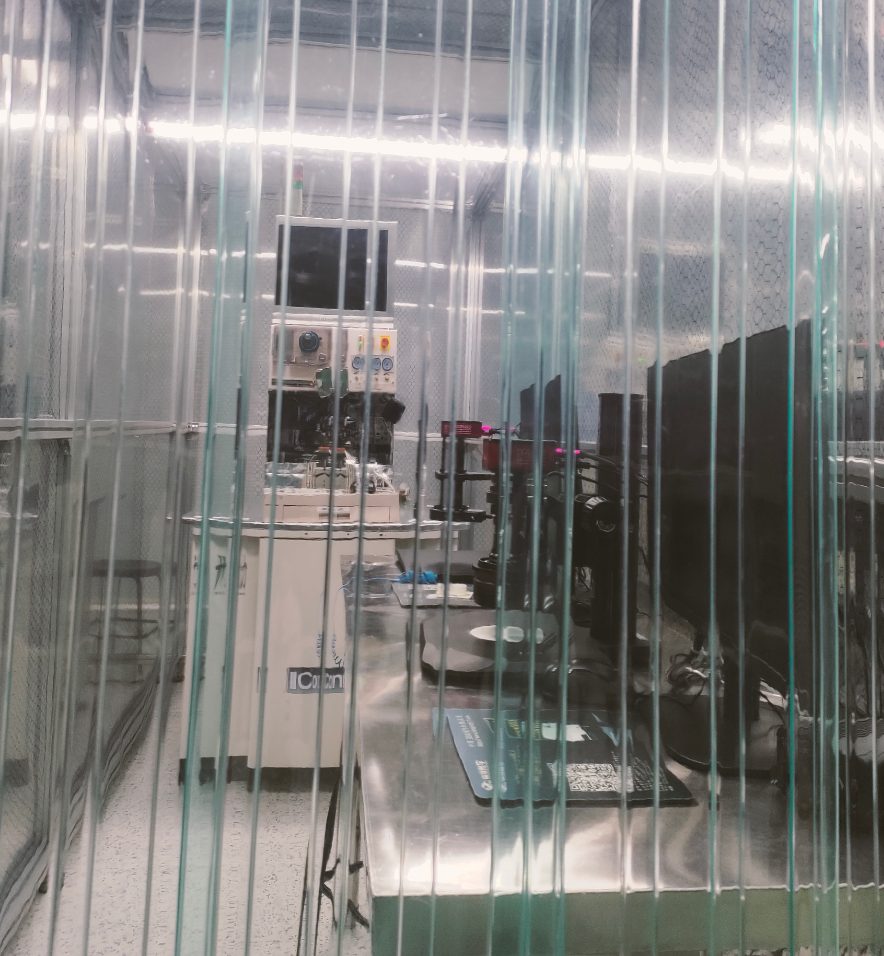

Cleanroom process station at Sunwin's manufacturing base in Shenzhen — Cleanroom process station

Clean assembly booth at Sunwin's manufacturing base in Shenzhen — Clean assembly booth

Assembly and test area at Sunwin's manufacturing base in Shenzhen — Assembly and test area

Assembly and test line at Sunwin's manufacturing base in Shenzhen — Assembly and test line

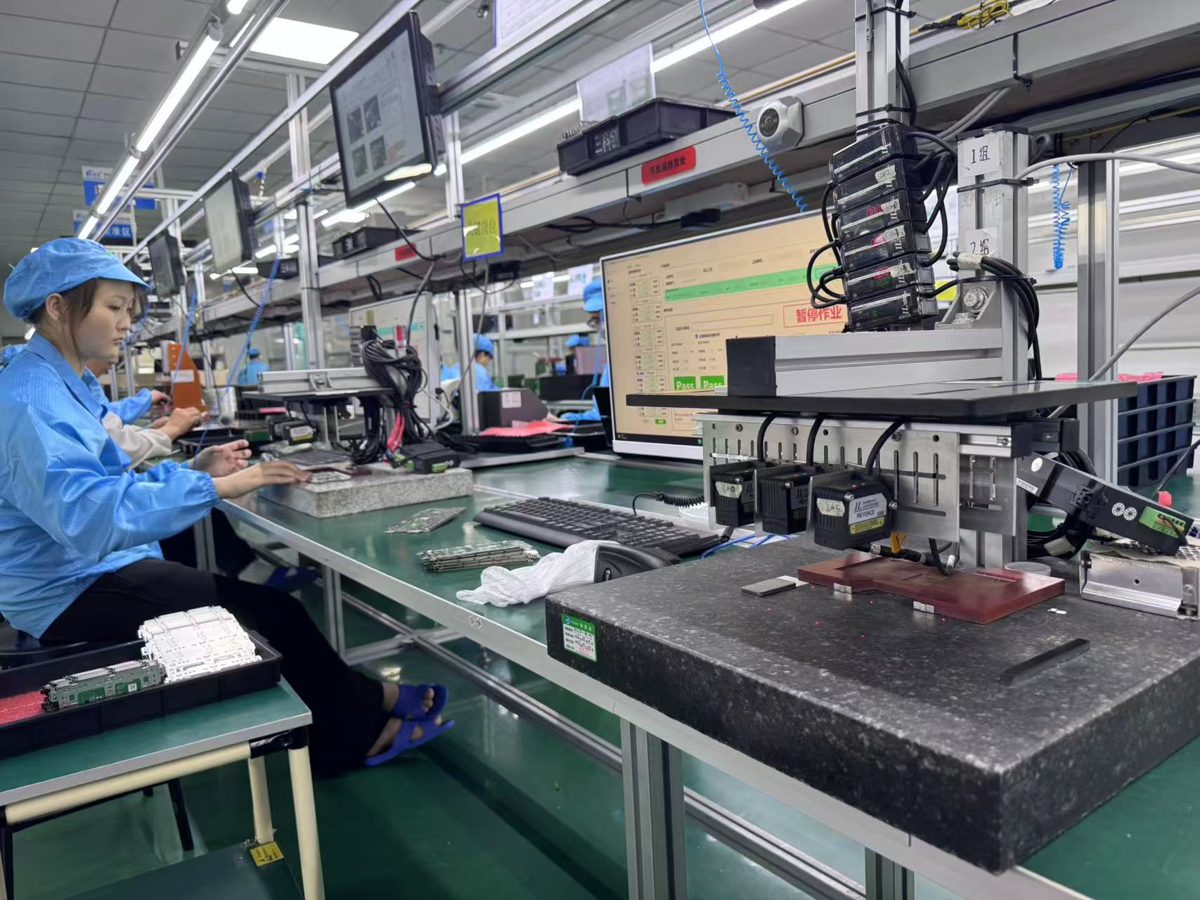

Functional test station at Sunwin's manufacturing base in Shenzhen — Functional test station

Equipment and capacity

EQUIPMENT

Core Equipment

YAMAHA high-precision mounters (±5 μm on high-precision machines); GKG printers (±12.5 μm); Sinictek 3D SPI (1 μm height accuracy); 12 nitrogen reflow ovens (≤500 ppm O₂); 3D AOI (±2 μm height); 2.5D X-ray and CT (1 μm resolution); K&S wire bonders; helium leak detectors.

CAPACITY

Batch Flexibility

More than 30 million SMT placements per day and over 800 million per month; more than 150,000 MEMS optical TO assemblies per month. A 24-hour rapid prototyping channel and small batches from 100+ units run on the same lines as volume production.
